Forschungsschwerpunkt

SiC Modul

Embedded SiC Power-Module

  • Lσ power module < 1.7 nH
  • PCB Embedding: Smart p² Pack® Technology by SE AG
  • Power range up 231 kVA (for a 6 phase inverter)
  • Highest on-board function integration: Damped DC-Link, gate power supply, gate driver, 2 temperature sensors (one per switch), embedded current sensor, fast analogue short-circuit detection, signal insulation and digitalization

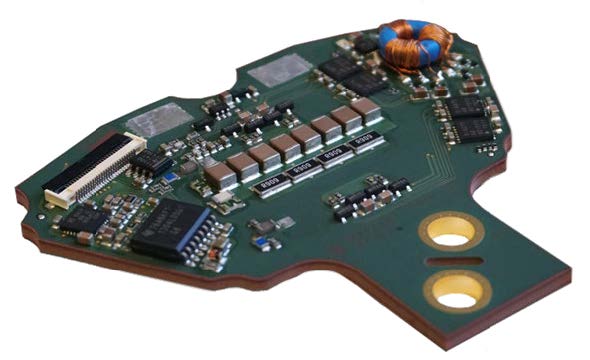

Exponat - Messe - Leistungsmodul
