Advanced System Engineering Lab

Microsystem Technology - Equipment and Tools

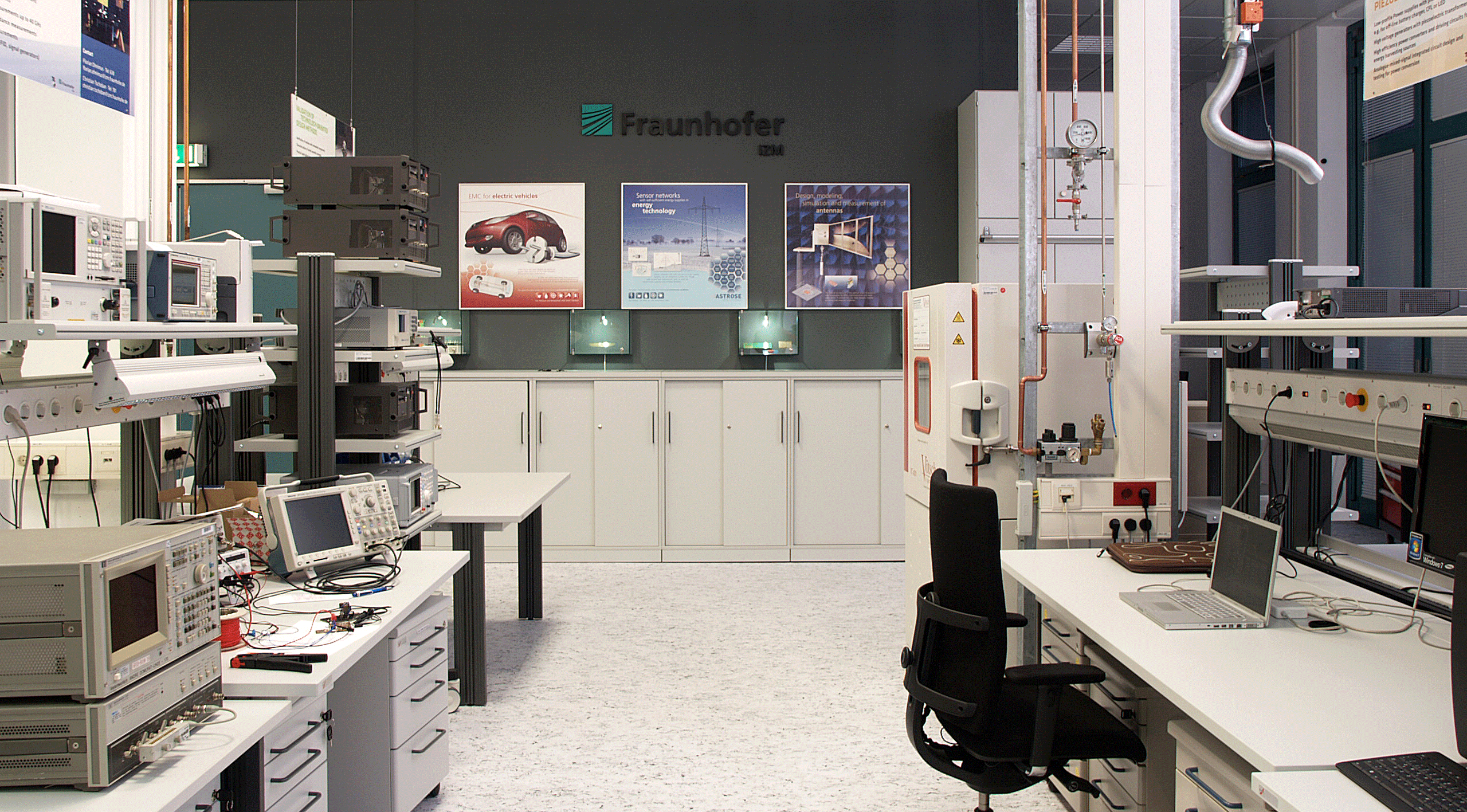

Laboratory Equipment

  • Agilent Technologies, 16822A 68-channel logic analyzer with 250ps resolution
  • Agilent Technologies, V2920A RF vector signal generator 10MHz to 4GHz
  • Agilent Technologies, V2820A RF vector signal generator 400MHz to 4GHz
  • essemtec, stencil printing SP002
  • essemtec, manual/semiautomatic pick&placer EXPERT
  • essemtec, reflow oven RO250
  • essemtec, microplacer MPL3100

Design tools

  • Cadence Tool Suite
  • Eagle
  • PSpice
  • MatLab
  • LabView
  • SolidWorks
  • Ansoft, Ansys
  • DownStream, Cam350
  • Visual Studio 2010
  • LPKF Laser & Electronics, BoardMaster
  • LPKF Laser & Electronics, CircuitCAM
  • AVR Studio
  • Code Composer
  • Various frequency generators, oscilloscopes and multimeters
  • JBC, soldering station incl. hot-air soldering
  • AVR JTAGice mkii
