Low-Inductance Packages for Fast-Switching Semiconductors

The basis for Miniature Converters with High Power Density

The evolution of very fast-switching semiconductors on silicon carbide (SiC) and gallium nitride (GaN) basis opens the gates for completely new standard power converters. The key is to not simply replace silicon semiconductors in a standard case – the minimal improvement in performance would be too dearly bought.

To use the full potential of fast-switching wide band gap semiconductors, packages are needed that combine low parasitic capacity with good thermal management. The semiconductors can then be run at fast switching frequencies and high currents, allowing an up to tenfold decrease in the size and weight of passive components like filter chokes.

Integrating power semiconductors into circuit boards can offer the designers the freedom they need to create packages with the desired traits. At the same time, it provides an opportunity to place components in the immediate vicinity of the semiconductors to establish a breaker cell as the new core of a miniaturized converter. The end result is a compact converter capable of handling extreme power densities.

Possible use cases include solar power converters, active filters, PFCs, or converters for electric vehicles or charging stations.

Niederinduktive Packages für schnell schaltende Halbleiter | Fraunhofer IZM
© Fraunhofer IZM
Niederinduktive Packages für schnell schaltende Halbleiter | Fraunhofer IZM
© Fraunhofer IZM
Niederinduktive Packages für schnell schaltende Halbleiter | Fraunhofer IZM | Volker Mai
© Fraunhofer IZM | Volker Mai

Innovative driver from Fraunhofer IZM

Miniaturized, Zero-Dead-Time High-Efficiency Drivers for Si, SiC, and GaN Applications

Fraunhofer IZM eliminates the speed limit for power electronic switching

Download | Brochure

Power electronics

Fast switching in power electronics

Fraunhofer IZM eliminates the speed limit for power electronic switching

Download | Flyer

Ultra Low Inductive Multilayer Ceramic SIC Power Module

Projects

Project: SOlar, Protosol

Low-interference solar inverter with fast SiC semiconductors

Project: ELBA

Electrical Rotor Hub Actuator

HHK

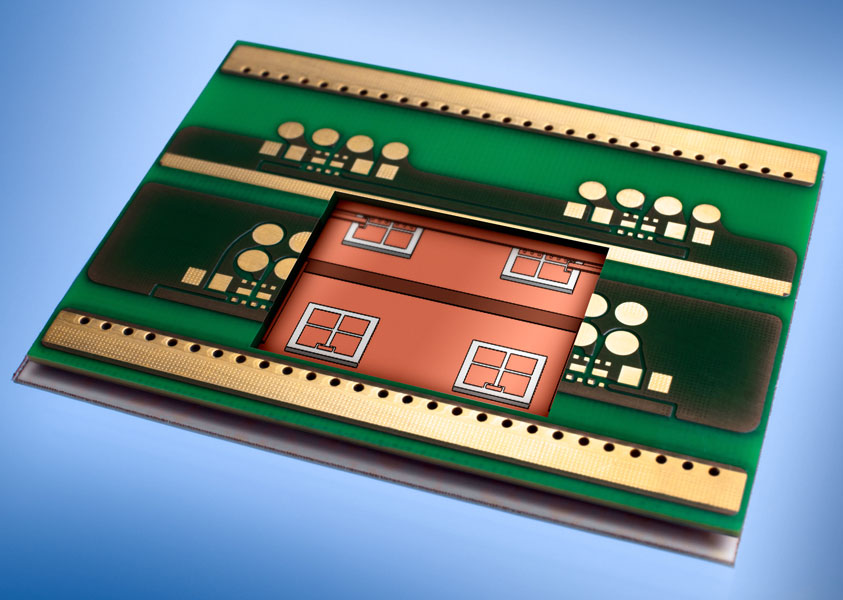

High-frequency high-current components for use in medical technology and MW-class photovoltaic inverters (HHK)

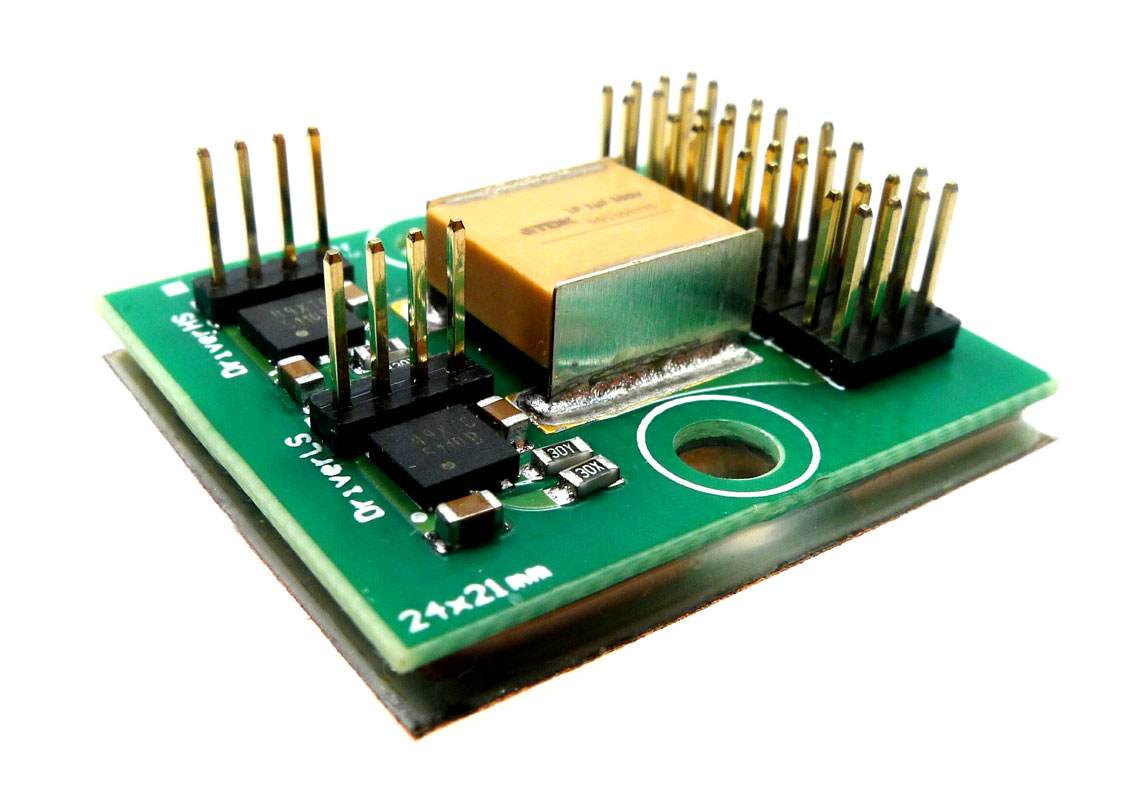

Epcos switching cell

Integrated switching cell for GaN semiconductors with driver and intermediate circuit capacitor.

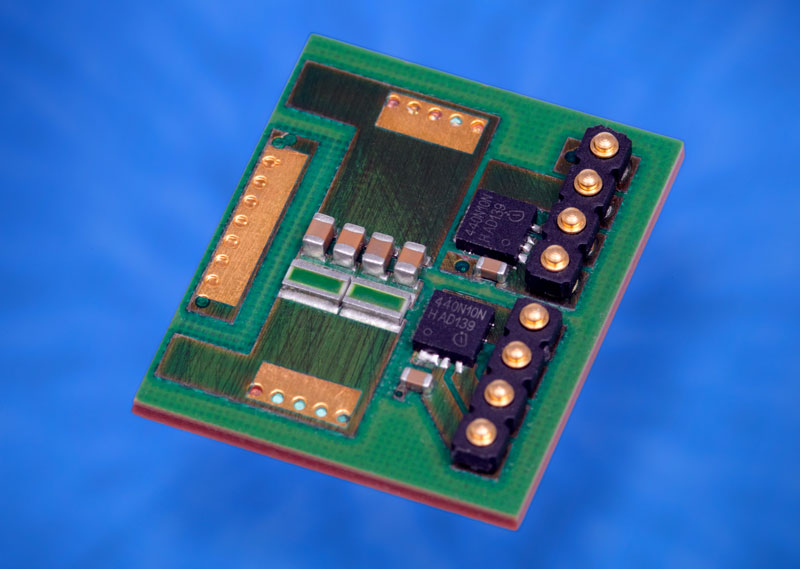

Very Fast Switching
