The green energy revolution has firmly established offshore wind power as the backbone of renewable energy: Its many advantages – like the sheer wind yield out at sea – are often impacted by the costs of operating systems that can only be installed and serviced when the weather and the seasons allow. The installation of the necessary power electronics is a costly and labor-intensive effort, making reliable and long-lasting technology a precondition for commercial viability. Fraunhofer researchers and their project partners have found answers in the KorSikA and AMWind project.

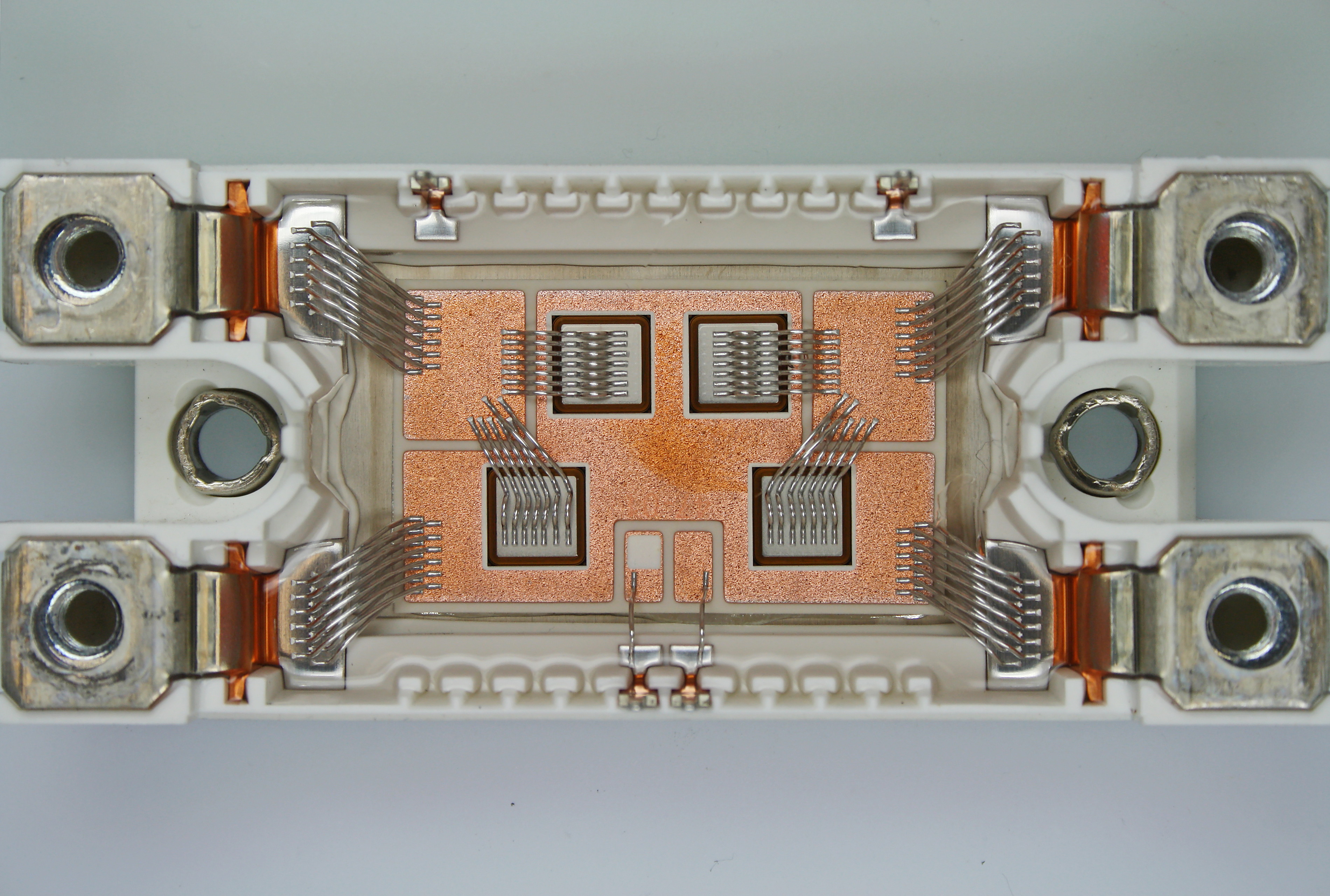

Wind-swept, wet, freezing cold or blazing hot – Wind turbines have to withstand the most extreme climatic conditions on a daily basis, accelerating the aging process for their structural materials and the power electronics installed within them. For the KorSikA project, the Fraunhofer Institute for Reliability and Microintegration IZM has teamed up with six partners to research the corrosion effects on silver sintering both in isolation and in the realistic context of working modules exposed to watery and salty electrolytes at sea.

Offshore wind farms need to achieve long working lives to realize their entire commercial and environmental potential. At the same time, they are exposed to extremes of humidity, a constant spray of salt water, and the unpredictable weather at sea. Multiple tests have shown sintering processes to produce more reliable and thermally resilient connections than the current standard technology of soldered layers. An unknown quantity, however, is how the transition to sintered power modules will affect other parameters in offshore wind turbines. The joint KorSikA project was launched to close this gap, with Fraunhofer IZM exploring aspects of reliability and the technology’s long-term durability. This was made possible by simulating the relevant environmental forces in a realistic, but accelerated setting: With offshore installations designed for working lives of up to four decades, the usual lifecycle of the power electronics had to be condensed to a period of several weeks. Individual factors, like extreme temperature ranges and the high humidity at sea, were reinforced to expose the sintered modules, constructed to current industry norms as well as different designs, to conditions that can be expected in the field. The different components were then scrutinized and analyzed to understand their susceptibility to these forces over the entire value chain of the technology.

In a second project stream, the researchers worked with a wind turbine already installed and active to test state monitoring options over the lifecycle of the installed power electronics. Remote monitoring in this way is essential, as it empowers operators to keep an eye on the state of their facilities at any time of the year and in every weather.

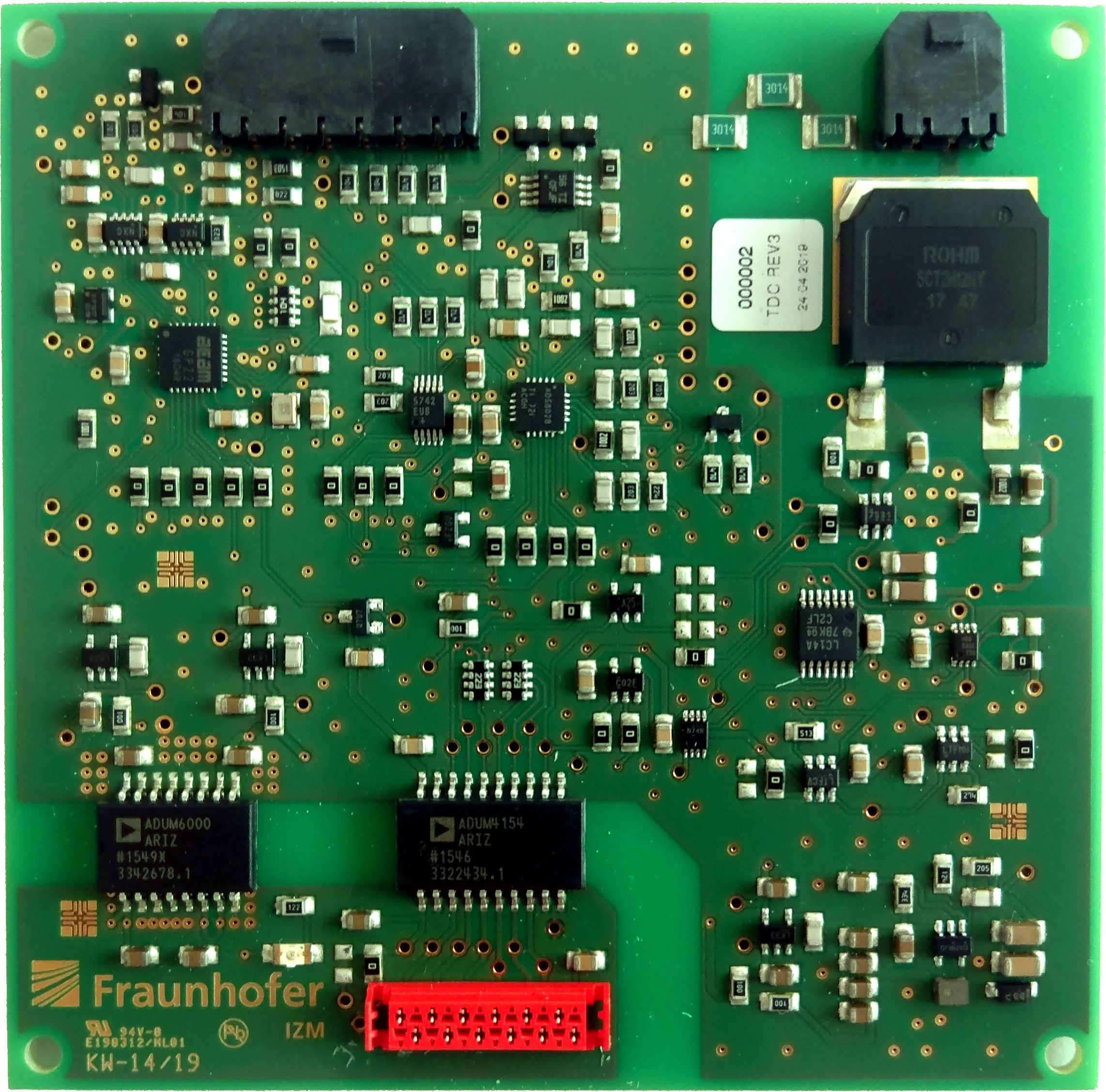

The AMWind project produced a concept and developed a component that tracks the state of the power modules by monitoring certain electrical parameters affected by temperatures. This allows a precise forecast of the remaining working life of the power electronics of wind farms in active offshore use. Targeted state monitoring of this nature can help predict or prevent breakdowns in the field. Preemptive concepts like this are already the established standard for other critical components like transmissions or bearings, but the integrated power electronics as yet lack reliable means for monitoring the technology as it ages. An 8 x 8 cm board is integrated directly in the offshore wind turbine’s power module and surveys several characteristic properties that vary with minute changes in power dissipation, revealing the thermal effects at work on site. It does so by analyzing certain temperature-dependent electrical signals: the so-called Miller plateau, which determines the time between different voltages during switching. The hardware developed by Fraunhofer IZM records the data with micro-second accuracy to calculate the actual temperature at the module.

The key: The finished driver board is produced specifically for each power module. Once mounted, the micro-controller on it processes the data and passes it directly on to the wind farm operator to help with scheduling maintenance work. This allows a very precise real-time prediction of current stresses, helping keep wind farms working and producing power for longer. More accurate planning reduces the burden of costly maintenance, dangerous repairs at sea, and the slow and expensive supply of spare parts.

The projects reveal the versatility of the reliability tests and real-life use cases made possible by the work of the Fraunhofer IZM’s Environmental and Reliability Engineering professionals. Their expertise in accelerated lifecycle testing, specialized testing methods, materials analysis, and condition monitoring for electronics helps make wind power a leading energy source of the future and brings us closer to a green energy future.
